Star White Metallic Tri-Coat

Baja

ENGINE: 6.7L HIGH OUTPUT POWER STROKE V8 DIESEL

TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC

ORDER CODE 608A

ELECTRONIC-LOCKING W/3.31 AXLE RATIO

FX4 OFF-ROAD PACKAGE

HIGH CAPACITY 11.6" AXLE UPGRADE PACKAGE

CHROME PACKAGE

DUAL AGM 68 AH BATTERY

TWIN PANEL POWER MOONROOF

FRONT LICENSE PLATE BRACKET

LED ROOF CLEARANCE LIGHTS

TOUGH BED SPRAY-IN BEDLINER

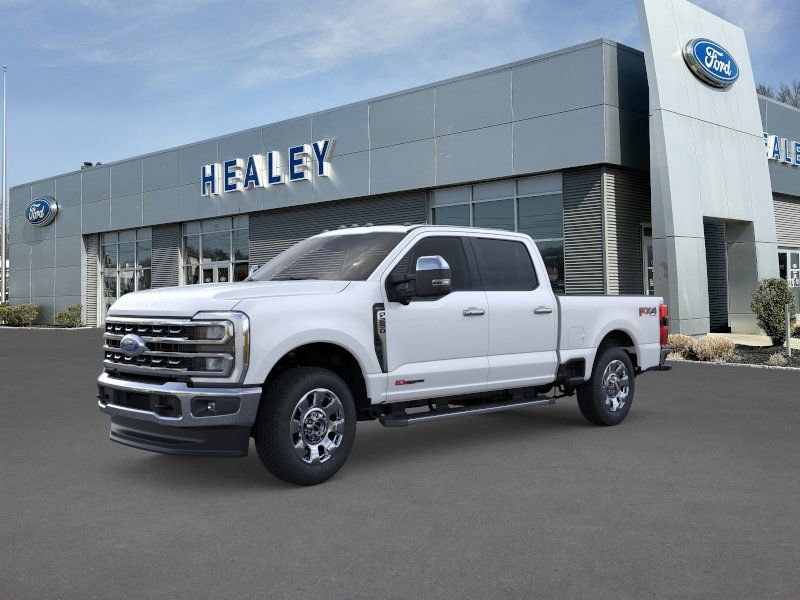

Vehicle Name - Ford Super Duty F-250 SRW

Body Style - SD Crew Cab

Body Code - T

Drivetrain - Four Wheel Drive

Passenger Capacity - 5

Base Curb Weight (lbs) - 6524

Gross Axle Wt Rating - Front (lbs) - 5600

Gross Axle Wt Rating - Rear (lbs) - 6340

Curb Weight - Front (lbs) - 3786

Curb Weight - Rear (lbs) - 2610

Gross Vehicle Weight Rating Cap (lbs) - 11100

Fuel Economy Est-Combined (MPG) - - TBD -

EPA Fuel Economy Est - City (MPG) - - TBD -

EPA Fuel Economy Est - Hwy (MPG) - - TBD -

Gross Combined Wt Rating (lbs) - 31000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 22000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 2200

Fifth Wheel Hitch - Max Trailer Wt. (lbs) - 20500

Fifth Wheel Hitch - Max Tongue Wt. (lbs) - 5125

Maximum Trailering Capacity (lbs) - 22000

Engine Order Code - 99M

Engine Type - Intercooled Turbo Diesel V-8

Displacement - 6.7 L/406

Fuel System - Diesel Direct Injection

SAE Net Horsepower @ RPM - 500 @ 2600

SAE Net Torque @ RPM - 1200 @ 1600

Trans Order Code - 44G

Trans Type - 10

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.62

Second Gear Ratio (:1) - 2.92

Third Gear Ratio (:1) - 2.13

Fourth Gear Ratio (:1) - 1.77

Fifth Gear Ratio (:1) - 1.52

Sixth Gear Ratio (:1) - 1.28

Reverse Ratio (:1) - 4.70

Trans Power Take Off - Yes

Trans PTO Access - Yes

Transfer Case Model - Electronic

Transfer Case Power Take Off - Yes

Cold Cranking Amps @ 0? F (Primary) - 750

Cold Cranking Amps @ 0? F (2nd) - 750

Tons/yr of CO2 Emissions @ 15K mi/year - - TBD -

Maximum Alternator Capacity (amps) - 250 & 150

Engine Oil Cooler - None

Suspension Type - Front - Other

Suspension Type - Rear - Leaf

Spring Capacity - Front (lbs) - 5600

Spring Capacity - Rear (lbs) - 6340

Axle Type - Front - Non-Independent

Axle Type - Rear - Rigid Axle

Axle Capacity - Front (lbs) - 6000

Axle Capacity - Rear (lbs) - 7280

Axle Ratio (:1) - Front - 3.31

Axle Ratio (:1) - Rear - 3.31

Front Tire Order Code - TCW

Rear Tire Order Code - TCW

Spare Tire Order Code -

Front Tire Size - LT275/65SR20

Rear Tire Size - LT275/65SR20

Spare Tire Size - Full-Size

Front Tire Capacity (lbs) - 7180

Rear Tire Capacity (lbs) - 7180

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - 595

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - 595

Front Wheel Size (in) - 20 X 8

Rear Wheel Size (in) - 20 X 8

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Re-Circulating Ball

Turning Diameter - Curb to Curb (ft) - 53

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 14.3

Rear Brake Rotor Diam x Thickness (in) - 14.3

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 34

Front Head Room (in) - 40.8

Front Leg Room (in) - 43.9

Front Shoulder Room (in) - 66.7

Front Hip Room (in) - 62.5

Second Head Room (in) - 40.4

Second Leg Room (in) - 43.6

Second Shoulder Room (in) - 65.9

Second Hip Room (in) - 64.7

Wheelbase (in) - 160

Length, Overall (in) - 250

Width, Max w/o mirrors (in) - 80

Height, Overall (in) - 81.3

Overhang, Front (in) - 38.2

Cab to Axle (in) - 56.1

Ground to Top of Load Floor (in) - 37.2

Ground Clearance, Front (in) - 8.5

Ground Clearance, Rear (in) - 8.5

Cargo Box Length @ Floor (in) - 98.1

Cargo Box Width @ Top, Rear (in) - 66.9

Cargo Box Width @ Floor (in) - 66.9

Cargo Box Width @ Wheelhousings (in) - 50.5

Cargo Box (Area) Height (in) - 21.1

Tailgate Width (in) - 60.5

Cargo Volume (ft?) - 78.5

Seventh Gear Ratio (:1) - 1.00

Eighth Gear Ratio (:1) - 0.85

Model Group - F-Series Pickups

Vehicle Segment - Large Pick-up

Vehicle Type - Crew Cab

Body Cab Style - Crew Cab

Bed Style - regular

Engine Displacement Units - 6.8

Engine Camshaft - SOHC

Engine Block Type - iron

Engine Cylinder Count - 8

Engine Valve Count - 2

Country of Origin - United States Ford
